Article Overview
An ungrounded distribution box poses serious safety hazards, including electric shock, equipment damage, and code violations, and must be properly grounded immediately.
Risks of an Ungrounded Distribution Box
A distribution box that is not grounded can create multiple hazards:
- Electric Shock: If a live wire accidentally contacts the metal enclosure, anyone touching the box can become a path to earth, risking severe injury or death .
- Equipment Damage: Ungrounded boxes cannot safely dissipate fault currents or surges, which can damage sensitive electrical components .
- Code Violations: NEC 250.148 mandates that all metallic parts of electrical enclosures, including doors, must be bonded to ground . Failure to comply can result in inspection failures and legal liability.
Proper Grounding Practices
To ensure safety and compliance:
- Grounding Conductor: Use a dedicated green grounding wire connected to a grounding bar or threaded stud in the box. In the US, a 10 AWG wire is standard; in other markets, a 6 mm² wire is typical .
- Grounding Bar: Connect all protective earth conductors to a grounding bar (PE bar), which is bonded to the enclosure. This ensures fault currents are safely directed to earth .
- Resistance Requirements: The total ground resistance should be very low, typically below 0.1 ohm for industrial applications, to ensure effective fault current dissipation .

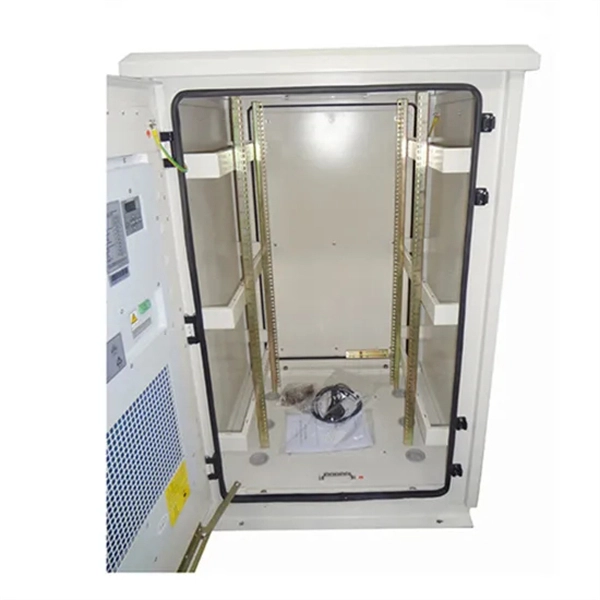

- Metal Doors: Even if the cabinet body is grounded, metal doors must also be bonded to prevent static discharge and accidental shock .
Common Mistakes to Avoid
- Relying solely on mounting bolts for grounding instead of a dedicated conductor .
- Using substandard materials that corrode quickly, reducing grounding effectiveness .
- Ignoring periodic testing of ground resistance, which can allow faults to go undetected .
Corrective Actions
- Inspect the Box: Verify if the enclosure, doors, and internal components are properly bonded.
- Install Grounding Conductors: Connect the enclosure and all metallic parts to a reliable ground point using appropriate wire size.
- Test Ground Resistance: Ensure the resistance is within safe limits (<0.1 ohm industrial, <25 ohms per NEC for general installations), .
- Regular Maintenance: Periodically check connections, tighten screws, and replace corroded wires to maintain grounding integrity . Proper grounding is essential for both personal safety and equipment reliability, and any ungrounded distribution box should be corrected immediately to prevent accidents and comply with electrical codes.
