Fusion splicing between single-mode and multimode fibers is possible but challenging due to differences in core size, mode-field diameter, and alignment tolerances, often resulting in higher insertion loss than splicing identical fibers.

Key Considerations

Core Size and Mode-Field Mismatch: Single-mode fibers have very small cores (typically ~9 µm) and precise mode-field diameters, while multimode fibers have larger cores (50–62.5 µm) and support multiple propagation modes. This mismatch makes it difficult to achieve efficient light coupling, and even a perfectly aligned splice will inherently have higher insertion loss compared to splicing identical fibers . Alignment Requirements: Fusion splicing relies on precise alignment of fiber cores. Single-mode fibers require extremely accurate transverse and angular alignment due to their small core size, whereas multimode fibers are more forgiving because of their larger cores. When splicing single-mode to multimode, the alignment must account for the mode-field mismatch, which is the primary source of coupling loss . Insertion Loss: Typical fusion splices between identical single-mode fibers can achieve losses below 0.05 dB, while multimode fiber splices usually have losses below 0.1 dB. However, splicing single-mode to multimode fibers can result in significantly higher losses, often in the range of 1–2 dB or more, depending on the fiber types and quality of alignment . Splicing Procedure:

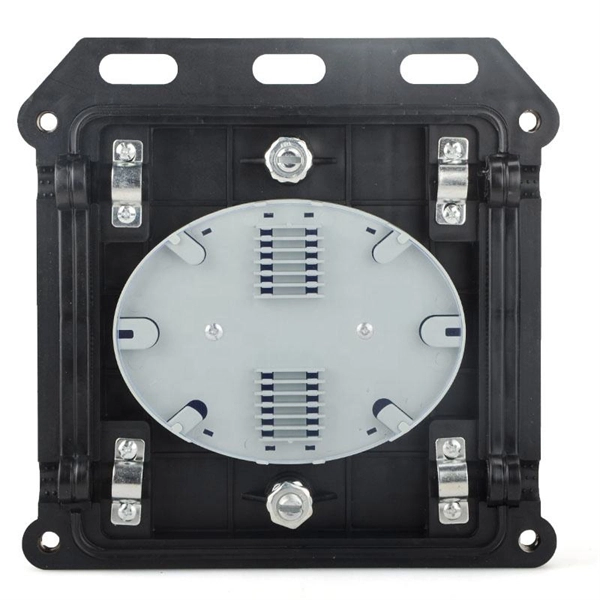

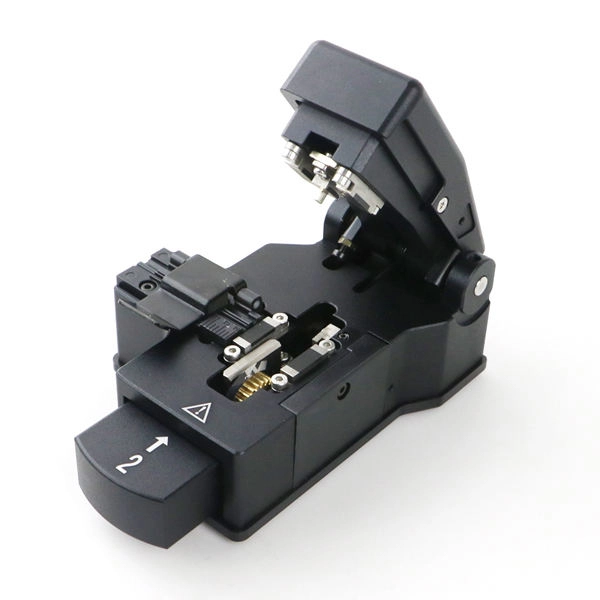

1. Cleave the fibers precisely using a high-quality fiber cleaver to ensure flat, perpendicular end faces.
2. Align the fibers using a fusion splicer capable of handling different fiber types. Some splicers allow manual adjustment to optimize coupling between mismatched cores.
3. Fuse the fibers using an electric arc, carefully monitoring the splice loss if the splicer has an optical loss estimation feature.
4. Protect the splice with a heat-shrink sleeve or protective coating to maintain mechanical strength . Practical Recommendations:

• Fusion splicing single-mode to multimode fibers is generally used only when necessary, such as connecting legacy multimode systems to single-mode networks.
• Consider using mode-field adapters or tapered fibers to reduce insertion loss.
• For critical applications, mechanical splices or connectors may be preferred to allow testing and adjustment before permanent fusion .

Summary

While fusion splicing single-mode to multimode fibers is technically feasible, it is less efficient than splicing identical fibers due to core size and mode-field mismatches. Careful alignment, precise cleaving, and protective measures are essential to minimize insertion loss and ensure a reliable connection. For applications requiring minimal loss, using mode-field adapters or alternative connection methods is recommended.
