A courtyard electrical distribution box safely distributes electricity from the main supply to multiple circuits while protecting the system from overloads and faults.

Core Function

A courtyard electrical distribution box, also known as a distribution board or DB box, acts as the central hub of a building's electrical system. It receives incoming power from the main supply and divides it into separate circuits that feed lights, appliances, and other electrical devices throughout the property, ensuring electricity is delivered safely and efficiently to each area .

Safety and Protection

The distribution box is equipped with circuit breakers, fuses, and sometimes residual current devices (RCCBs). These components protect the electrical system by interrupting power in case of overloads, short circuits, or faults, preventing damage to devices and reducing the risk of fire .

Components and Features

• Circuit Breakers: Automatically cut off power to a circuit when excessive current is detected.
• Fuses: Provide additional protection by melting under high current conditions.
• Bus Bars: Conduct electricity to multiple circuits efficiently.
• Smart Modules (optional): Some modern DB boxes include energy monitoring and remote control features for better power management .

Residential vs. Commercial Use

In residential courtyards, the distribution box typically handles standard circuits for lighting, outlets, and small appliances. In commercial or industrial settings, the box may manage higher loads and more complex circuits, sometimes including sub-panels for better organization .

Installation Considerations

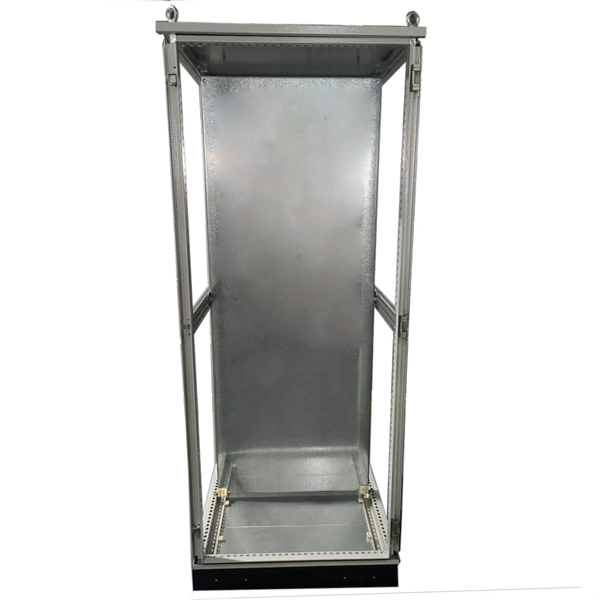

Courtyard DB boxes are usually installed in accessible, weather-protected locations. They are often housed in metal or durable plastic enclosures to prevent accidental contact and protect internal components from environmental damage .

Summary

The courtyard electrical distribution box is essential for safe, organized, and efficient power distribution. It ensures that electricity is delivered where needed, isolates faults to prevent system-wide outages, and provides a convenient access point for maintenance and upgrades .
