Article Overview
The minimum bend radius of a fiber optic cable is typically 20 times the cable diameter during installation and 10 times the diameter after installation.
Understanding Bend Radius
The bend radius of a fiber optic cable is the smallest radius the cable can be bent without causing physical damage or signal degradation. It is measured from the inside of the bend, not the outer curve, and is critical for maintaining optical performance and long-term reliability . Exceeding the bend radius can lead to broken fibers, microbends, increased attenuation, and permanent structural damage .
Standard Guidelines
- During installation (under tension): The minimum bend radius is generally 20 times the cable diameter. For example, if a cable has a diameter of 5 mm, the minimum bend radius while pulling would be 100 mm .
- After installation (no tension): The long-term minimum bend radius is typically 10 times the cable diameter, allowing the cable to maintain its integrity in storage loops or permanent routing . Some cables, especially high fiber count or bend-insensitive fibers, may have different specifications. For instance, certain indoor/outdoor OM5 cables have a minimum bend radius of 2.7 inches (6.9 cm) for long-term use . Always consult the manufacturer's datasheet for precise values.
Factors Affecting Bend Radius
- Fiber type: Standard single-mode fibers (G.652) have larger minimum bend radii than bend-optimized fibers (G.657) due to their sensitivity to bending .
- Cable construction: Armored, micro-armor, or tight-buffered cables may allow smaller bend radii.
- Installation conditions: Pulley systems, conduit routing, and tension during pulling require careful adherence to radius specifications to prevent damage .
Practical Tips
- Use loops or pulleys with diameters at least twice the minimum bend radius to avoid stress.

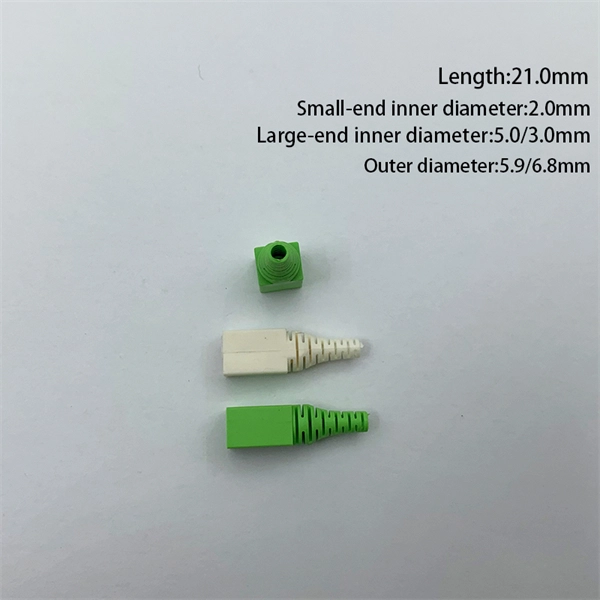

- Avoid sharp bends, kinks, or twisting during installation.
- For tight spaces, consider bend-insensitive fiber cables, which can tolerate smaller radii without significant signal loss . By following these guidelines, fiber optic cables can maintain optimal performance, reduce attenuation, and ensure long-term network reliability .
