Fireproof cable tray connection gaskets must use certified firestop materials, ensure complete sealing of gaps, and maintain fire-resistance ratings according to UL or EN standards.

Material Requirements

Fireproof gaskets for cable trays should be made from intumescent materials, mineral wool, or fire-rated elastomeric compounds that expand or maintain integrity under high temperatures to prevent fire and smoke propagation . Common options include:

• Intumescent caulks or putty: Expands when exposed to heat, sealing gaps around cables and trays .
• Firestop packs or pillows: Modular, pliable inserts that conform to tray openings and maintain fire ratings .
• Mineral wool with fire-resistant coatings: Provides thermal insulation and structural stability in penetrations . All materials should be UL-listed or EN-certified for the specific fire rating required (e.g., 1-hour, 2-hour, or 3-hour F-rating) and compatible with the tray type and wall or slab construction .

Installation Requirements

1. Gap Sealing: All gaps between the cable tray and the wall, floor, or slab must be tightly sealed. The gap area should not exceed 1 cm², and packing thickness should meet minimum firestop specifications (e.g., ≥24 cm for large openings), .
2. Backing Plates: For large openings, a fire-resistant backing plate should be installed before applying gaskets or firestop materials to ensure stability .
3. Encapsulation: Cut edges of trays should be sealed with firestop caulk or intumescent sheets to prevent heat penetration and maintain structural integrity .
4. Layering and Sequence: Firestop packs or gaskets should be installed in an orderly sequence, ensuring complete coverage both internally and externally around the tray .
5. Cover Plates: Use square, evenly painted cover plates to close openings, ensuring a uniform fire barrier .

Design and Compliance Considerations

• Tray Size and Type: Larger trays or non-ladder types may require additional firestop measures or engineering judgment letters from manufacturers .

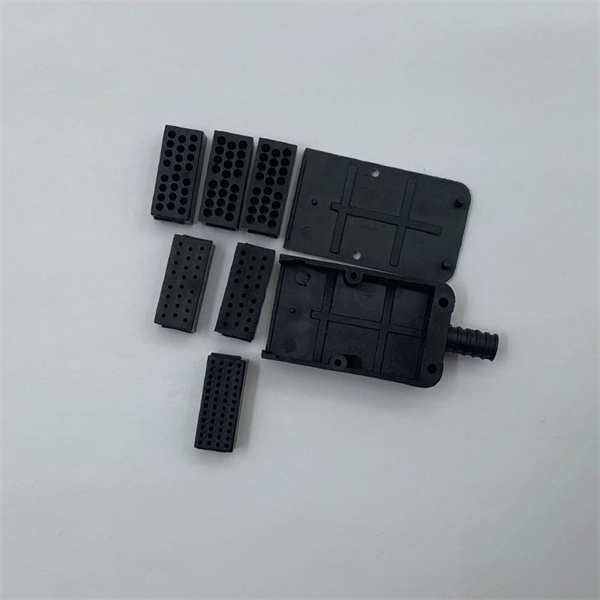

• Modular Systems: Systems like Roxtec allow for flexible, expandable sealing while maintaining fire integrity, useful for future cable additions .
• Environmental Resistance: Fireproof gaskets should also resist moisture, chemicals, and UV exposure if installed outdoors or in harsh environments .

Summary

To meet fireproofing requirements, cable tray connection gaskets must be made of certified fire-resistant materials, installed to fully seal gaps, and maintain the rated fire-resistance period. Proper installation includes backing plates, orderly packing, encapsulation of tray edges, and use of cover plates. Compliance with UL or EN standards ensures that the system effectively prevents fire, smoke, and toxic gas propagation through cable tray penetrations .
