Splicing fiber optic cable to a patch panel involves preparing the fiber, performing either mechanical or fusion splicing, protecting the splice, and terminating it neatly in the patch panel for reliable, low-loss connections.

Step 1: Prepare the Fiber Cable

Before splicing, remove the outer jacket and protective coatings to expose the bare fiber cores. Use a fiber stripper to carefully remove the coating without damaging the glass core. Clean the exposed fibers with lint-free wipes and isopropyl alcohol to remove dust or contaminants, which is critical for low-loss splicing .

Step 2: Cleave the Fiber

Use a high-quality fiber cleaver to create a smooth, perpendicular end face on each fiber. A precise cleave ensures proper alignment and minimal signal loss during splicing .

Step 3: Choose a Splicing Method

• Fusion Splicing: Align the fiber ends in a fusion splicer, which uses an electric arc to weld the fibers together. This produces a permanent, low-loss connection (typically ~0.1 dB) and is ideal for backbone or high-performance networks .
• Mechanical Splicing: Insert the fibers into a mechanical splice connector with an index-matching gel. This method is faster, requires no power, and is suitable for temporary or short-distance connections, though it has slightly higher loss (~0.3 dB), .

Step 4: Protect the Splice

After splicing, place the joint in a splice protection sleeve and secure it inside a fiber splice tray within the patch panel enclosure. This protects the splice from environmental stress, maintains proper bend radius, and organizes multiple fibers neatly .

Step 5: Terminate to the Patch Panel

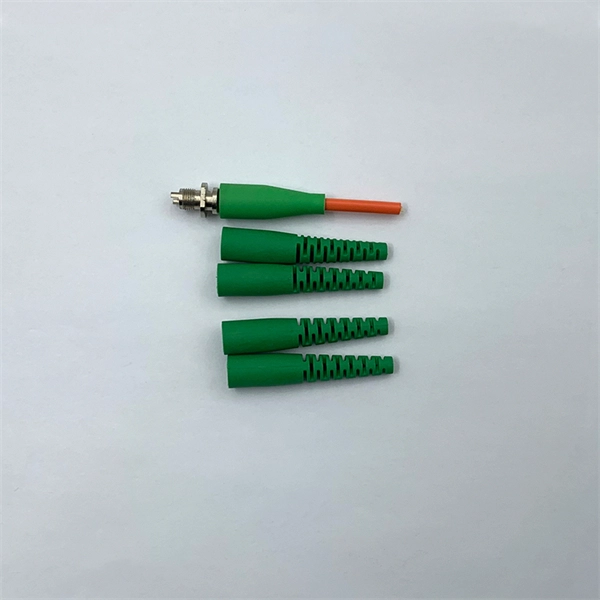

• For fusion splicing, attach pre-terminated pigtails to the spliced fibers and insert the connectors into the patch panel ports.
• For mechanical splicing, the connectorized ends can be directly inserted into the patch panel adapters . Ensure all fibers are labeled and routed to prevent tangling and maintain accessibility.

Step 6: Test the Connection

Use an Optical Time Domain Reflectometer (OTDR) or a power meter to verify the splice quality and signal integrity. Check for insertion loss and back reflection to confirm the connection meets network specifications .

Best Practices

• Always handle fibers carefully to avoid injury and contamination.
• Maintain proper bend radius to prevent signal loss.
• Label all fibers clearly for future maintenance.
• Use high-quality tools and follow manufacturer instructions for splicers and connectors . By following these steps, you can achieve a reliable, low-loss fiber optic connection from your cable to the patch panel, ensuring optimal network performance.
