Factory electrical distribution boxes vary widely, with typical wall-mounted units ranging from 200×200×120 mm to 800×600×300 mm, and freestanding industrial cabinets from 1600–2200 mm in height, 600–1800 mm in width, and 300–600 mm in depth.

Standard Wall-Mount and Freestanding Sizes

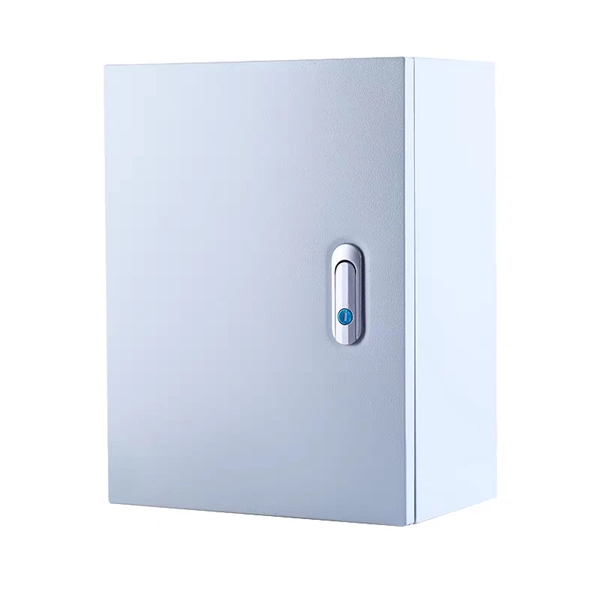

Wall-mounted distribution boxes are generally compact, designed for light-duty control, sensor hubs, or branch circuit junctions. Typical external dimensions range from 200×200×120 mm up to 800×600×300 mm, with usable internal space slightly smaller due to wall thickness, gaskets, and mounting hardware . Freestanding industrial cabinets are larger, often 1600–2200 mm tall, 600–1800 mm wide, and 300–600 mm deep, accommodating higher amperage equipment, busbars, and multiple circuit breakers .

Industrial and High-Capacity Boxes

For medium to large industrial applications, distribution boxes are designed to handle higher power ratings (e.g., 63–315 kVA). These boxes include busbars and droppers with cross-sections ranging from 50×8 mm to 1120×50×15 mm, and doors with overlapping collars and IP33–IP67 protection . Dimensions are often customized to meet project requirements, including depth for cable bending radius, heat dissipation, and future expansion .

Design Considerations

• Internal Layout: Always consider the back-panel or mounting plate size, not just external dimensions, for proper placement of breakers, PLCs, or other devices .
• Depth: Deeper boxes allow for more wiring capacity and easier maintenance .
• Protection Rating: IP44 to IP67 ratings affect enclosure thickness and sealing, impacting overall dimensions .
• Future-Proofing: Industrial boxes often include extra space for additional circuits, EV chargers, or smart system upgrades .

Summary

Electrical distribution boxes are not universally standardized in size, but manufacturers provide common size families for wall-mounted and freestanding units. Wall-mounted boxes are compact (200–800 mm width/height), while industrial freestanding cabinets are significantly larger (up to 2200 mm tall and 1800 mm wide). Customization is common for high-capacity or specialized applications, ensuring compliance with safety standards, proper heat dissipation, and sufficient space for wiring and future expansion .
