Power distribution boxes vary widely, from small single-gang boxes around 2″ × 3″ × 3.5″ to large industrial enclosures exceeding 2200 mm in height, 1800 mm in width, and 600 mm in depth.

Residential and Light Commercial Boxes

For typical wall-mounted or junction boxes:

• Single-gang boxes: approximately 2″ × 3″ × 3.5″, designed for one switch or outlet .
• Multi-gang boxes: accommodate multiple devices, with width increasing per gang while depth often ranges from 3.5″ to 4″ or more .
• Junction boxes: commonly 4″ × 4″ with multiple depth options to allow sufficient wire fill and splicing space . Depth is critical for wire capacity, and choosing a deeper box reduces overcrowding and improves safety during installation .

Industrial and Commercial Enclosures

For larger power distribution and control panels:

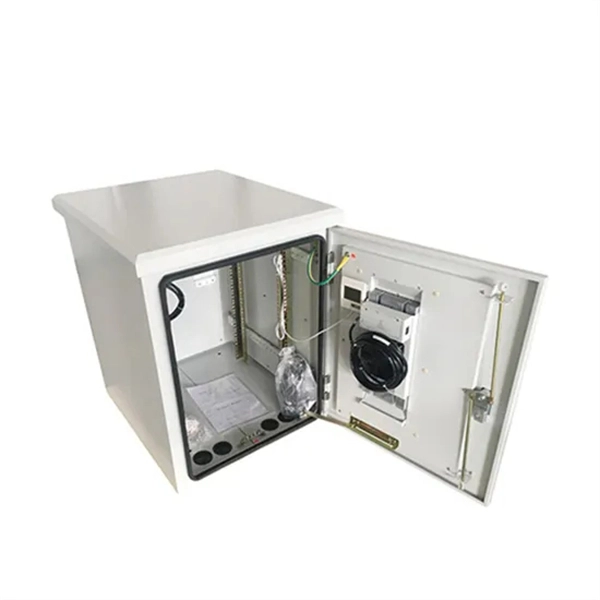

• Wall-mount enclosures: typically range from 200 × 200 × 120 mm up to 800 × 600 × 300 mm .

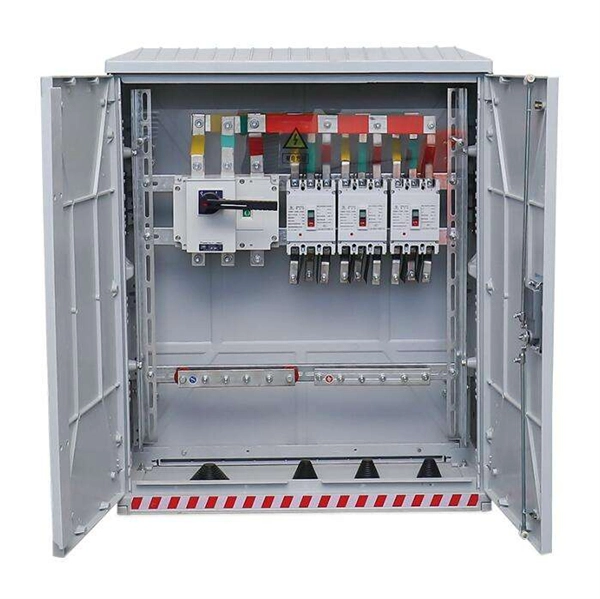

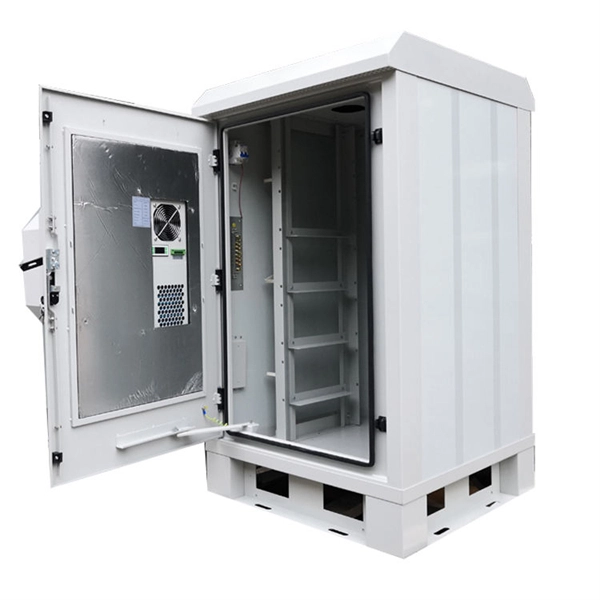

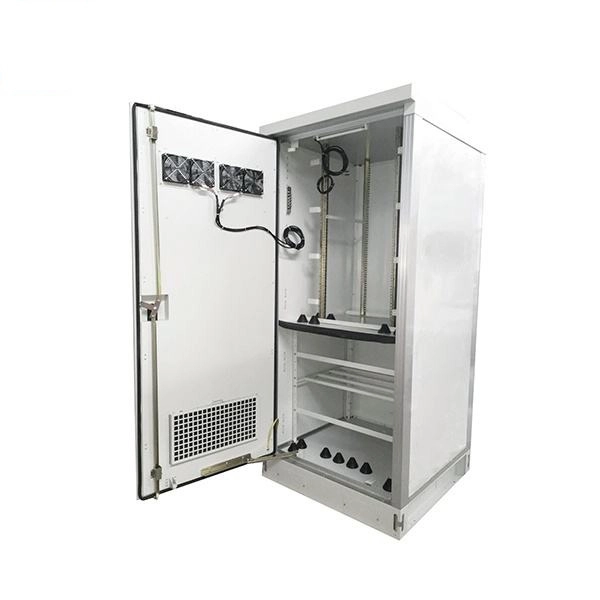

• Freestanding cabinets: often 1600–2200 mm in height, 600–1800 mm in width, and 300–600 mm in depth, designed to house larger equipment, back panels, and allow for cable entry and heat dissipation .
• Custom metal enclosures: can be fabricated to meet specific industrial requirements, including telecom, solar, or vehicle power distribution systems . Internal usable space is always smaller than external dimensions due to walls, doors, and mounting hardware, so planning must account for conductor and device clearance .

Vehicle and Mobile Machinery Power Distribution Boxes

Specialized compact units, such as the REDline Power Box Twin, are designed for vehicles and mobile machinery:

• IP66/IP69K-protected housings
• Configurable for 12V or 24V systems
• Compact design to minimize wiring and fit within limited cab space These boxes are often customized to the vehicle layout, so exact dimensions vary per application.

Key Considerations

• Always check local electrical codes for minimum box volume requirements.
• Consider future expansion to avoid overcrowding.
• Depth and internal volume are more important than external width for high wire counts.
• For industrial or outdoor applications, IP-rated enclosures ensure protection against dust and water ingress. By selecting the appropriate size based on device count, installation environment, and safety standards, you can ensure a safe and efficient power distribution setup .
