Proper placement of fiber optic switches in a server rack involves careful planning, secure mounting, and structured cable management to ensure network reliability and airflow.

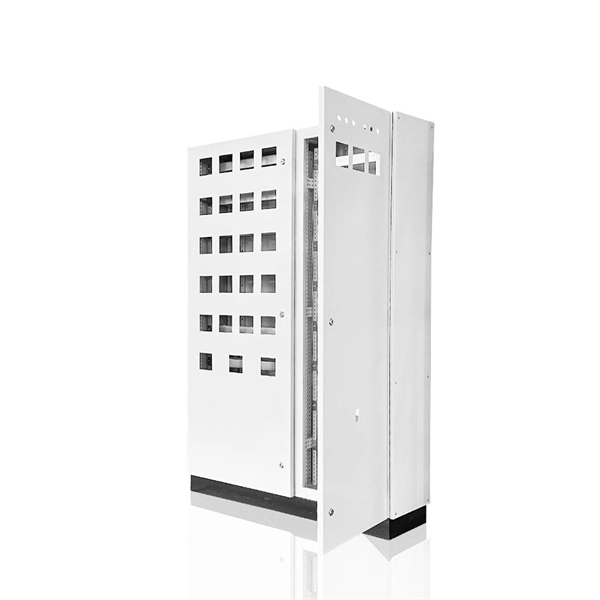

Preparing the Rack

Before installing switches, clear the rack of unused equipment and outdated cables to create a clean workspace and reduce interference . Ensure the rack has adequate space for the switch's height (measured in rack units, U) and width (typically 19 inches) and that it can support the switch's weight . Plan the rack layout to allow future expansion and easy access for maintenance .

Mounting the Switch

1. Attach mounting brackets to the switch using screws provided by the vendor .
2. Position the switch at the desired rack location, aligning it with the rack rails.
3. Secure the switch by fastening the brackets or screws to the rack, ensuring it is stable and level .
4. Connect the power cable according to manufacturer instructions, including proper grounding .

Cable Management

Proper fiber optic cable management is critical to prevent signal loss and maintain airflow . Follow these best practices:

• Use vertical and horizontal cable managers: Vertical managers on rack sides help bundle cables from multiple switches, while horizontal managers (D-rings, brush strips, or finger ducts) organize cables across the front or back of the rack .
• Maintain minimum bend radius: Avoid sharp bends or pinching of fiber cables to prevent signal attenuation or damage .
• Separate fiber and power cables: This reduces electromagnetic interference and ensures signal integrity .
• Label all cables and ports: Use unique IDs for each connection to simplify troubleshooting and future moves, adds, or changes .
• Use Velcro straps: Secure cables at regular intervals without over-tightening to prevent stress on the fibers .

Connecting Fiber Optic Cables

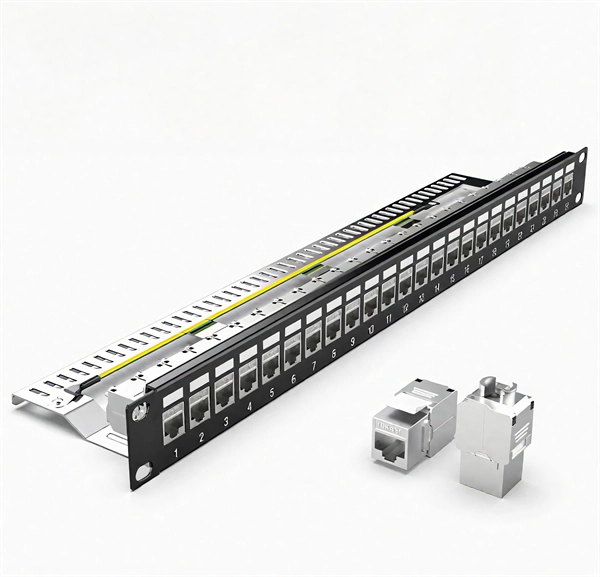

• Use patch panels or fiber cassettes: These provide organized termination points and simplify reconfiguration .
• Plan direct and logical routes: Avoid high-traffic areas and ensure cables do not obstruct airflow or access to other devices .
• Consider modular or sliding panels: These allow easier access to connections for maintenance or upgrades .

Final Checks

After installation, verify network connectivity and ensure all switches are powered and properly configured . Confirm that cables are neatly routed, bend radius is maintained, and airflow is unobstructed to prevent overheating . By following these steps, fiber optic switches can be securely installed in a server rack with organized cabling, optimal performance, and scalability for future network growth .
